BMW Garage · Al Quoz 4
BMW Control Arm
Replacement in Dubai
Restore a settled front end with the right repair. We inspect worn joints, damaged arms and bushings, explain whether one arm or a pair needs replacing, and quote the fitted cost before work begins.
See control arm replacement prices
Price the complete repair
Control arm replacement prices
These planning estimates are for standard front-arm replacements. The component, BMW specification, parts choice and access affect the final quotation.
| Work and quantity | Estimated AED |
|---|---|
| One front control armOne compatible complete arm with fitting | 900–1,600 |
| Front left and right pairTwo corresponding complete arms with fitting | 1,800–3,200 |
| Front pair with alignmentTwo arms and fitting, plus a 3 or 5 Series alignment allowance | 2,050–3,550 |
A quotation for one loose arm is different from a fitted pair with alignment. Compare the exact component and side, how many arms are included, the supplied bushes and joints, and the installation work. An assembled arm can reduce separate bush-fitting work, but its condition and specification still matter. We explain the complete price so you can compare equivalent repairs.
Replace what the car needs
One arm or a matched pair?
Both sides are assessed before the repair is agreed. The condition found guides the quantity, rather than a blanket rule that every front arm must be changed.
Repair one affected side
A single-arm replacement can be suitable when damage or wear is confined to that arm and the corresponding component on the other side is serviceable. The replacement must match the correct side and application. We also inspect the nearby mounting points and joints so another fault is not overlooked.
This keeps the repair focused. An isolated bent arm after an impact is a different situation from several joints wearing across an older front end. If there are signs of impact damage, the assessment extends to the affected wheel, tire, mounting area and other relevant components before the parts list is finalized.
Replace the corresponding pair
A pair can be appropriate when both matching arms show wear or the condition supports renewing them together. The quote identifies which pair is meant. On a multi-link suspension, two front arms are not the same as every control arm on the axle.
Using matching, correctly specified parts helps make the repair consistent, but it does not justify discarding serviceable unrelated components. We explain any recommendation for additional arms or links separately. The pair estimate is a budgeting guide, with the final parts and fitting scope confirmed after inspection.
Know which component is affected

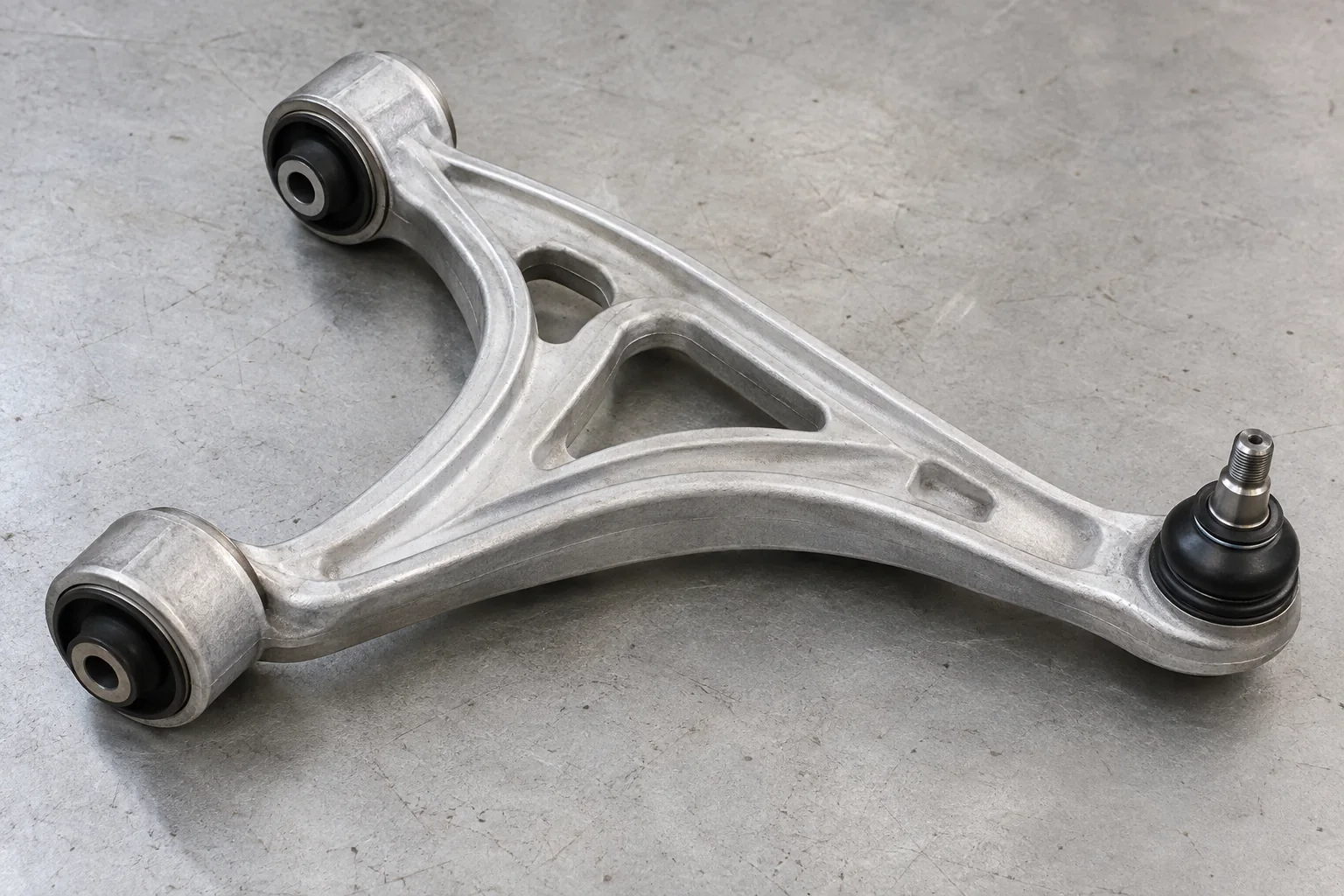

Arms, bushes and ball joints

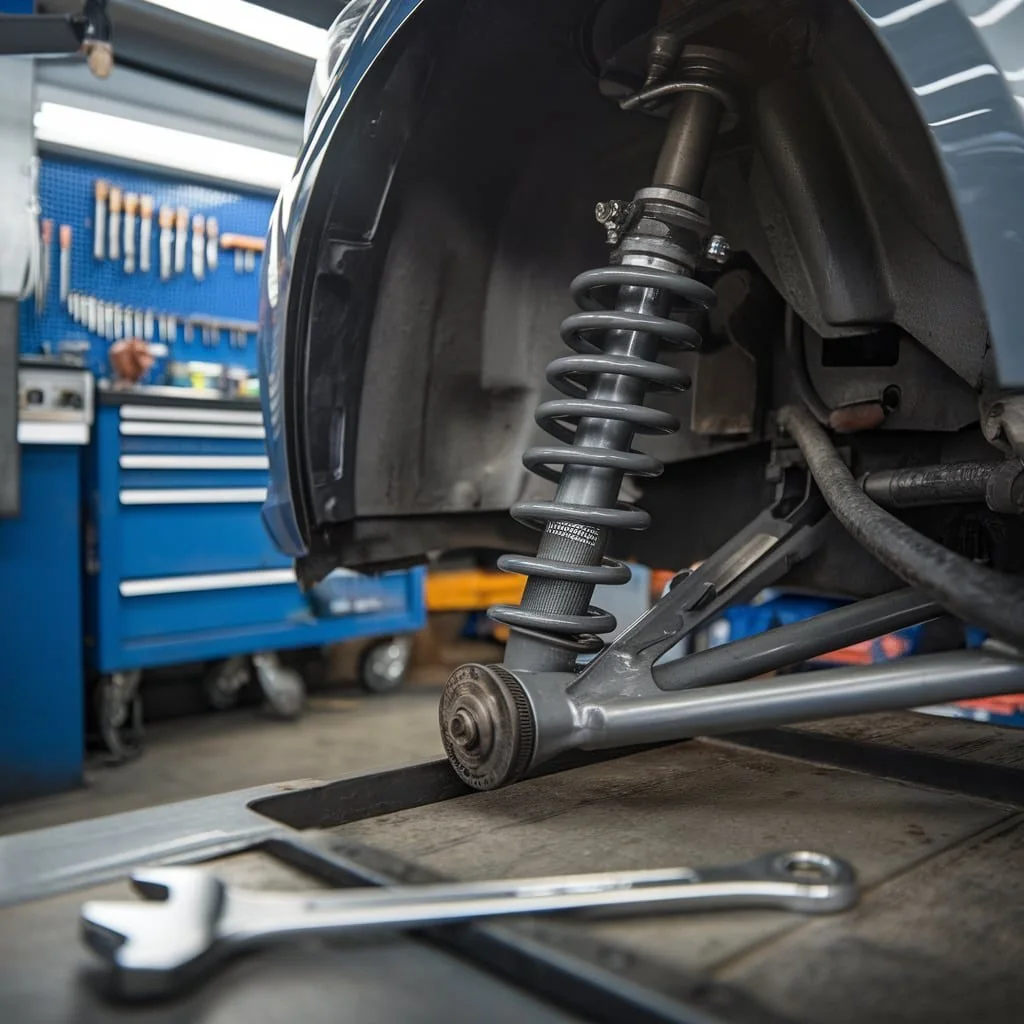

A control arm helps locate the wheel through the suspension’s movement. Its bushes and joints allow the intended movement while controlling unwanted play. Damage to the arm, deterioration of a bush and wear in a ball joint are different findings, even when the owner notices a similar knock.
Some joints or bushes can be serviced separately; others are supplied as part of an assembly. If the arm and joint remain suitable, replacing the affected bushing may be enough. We compare that option with the fitted cost and condition of a complete replacement arm.
Front suspension layouts and parts names vary. A thrust arm or tension strut may be a separate link from the arm described as the lower control arm. If its bush is the affected component, thrust-arm bushing replacement can be considered as a specific repair. The quotation names the component instead of relying only on “front suspension work.”
Bring the complaint to the inspection
Knocks, pulling or uneven wear
You do not need to identify the failed arm before contacting us. Tell us what has changed and when it happens so the checks follow the complaint.
Knocking over bumps
A worn joint or bush can allow movement as the suspension loads and unloads. Anti-roll-bar links, strut mounts and other components can also knock. We assess the likely source and check relevant fastenings, rather than treating every front-end noise as a complete-arm replacement.
Pulling or an off-center wheel
Tire condition, pressure, alignment and worn or damaged components can all affect how the car tracks. A new arm helps when the identified mechanical fault calls for it. If geometry also needs correction, that is addressed after the repair, with the alignment allowance shown in the quote.
Vibration or unwanted movement
Braking shake and a loose feel can have several causes. The assessment considers when the vibration occurs and whether it is felt through the steering wheel or body. A suspension inspection is useful when the complaint extends beyond one obvious arm or joint.
A sudden major change in steering, severe instability or a visibly loose component needs prompt attention. Stop driving and arrange recovery if control is affected. A remote description helps us arrange the next step, but the car needs assessment before anyone can say a particular suspension fault is safe to drive with.
Compare the actual part
Replacement arm options
The useful comparison is the correctly specified assembly, its supplied components and the support attached to it.
Genuine BMW assemblies
A genuine BMW arm is supplied under the vehicle manufacturer’s brand for a particular application. It is an option when you prefer that supply route. The side, part reference and included joint or bush are checked, along with availability for your car.
A genuine component still depends on correct fitting and sound mounting points. Replacing an arm cannot compensate for a damaged surrounding structure or leave an unrelated worn joint resolved. Those findings should be explained separately in the repair recommendation.
Compatible independent brands
An independent manufacturer may supply a suitable replacement arm. We identify the proposed brand and application so the decision is based on an actual part, not a vague claim that all aftermarket arms are identical. Construction and the components supplied can differ.
Correct compatibility should not depend on improvised shims or altering an arm to make it fit. Likewise, a broad claim that an independent arm will cause software errors is not a useful parts comparison. Any diagnostic concern should relate to a specific finding on the vehicle.
From assessment to handover
How the replacement is completed
The fitting process should protect the surrounding suspension and leave a clear record of the work.
- 01
Inspect the assembly
We assess the reported problem and examine the arm, bush, ball joint and relevant surrounding components. An apparent arm fault may require a different repair, so the check establishes what is worn or damaged before a replacement is recommended.
- 02
Identify and quote
The part reference, side and supplied assembly are matched to the vehicle. Your quotation sets out the quantity, fitting and any related work. We discuss parts availability and the expected workshop time once the replacement and access requirements are known.
- 03
Remove and fit
The suspension is supported and the relevant joints and fasteners are released using the procedure and tooling appropriate to the car. We avoid treating every BMW layout as identical. The replacement assembly is fitted with the required fixings, positioning and tightening procedure.
- 04
Check the finished repair
The assembly and original complaint are checked after fitting. Where the work affects wheel geometry, alignment is considered before the final assessment. The handover explains what was replaced, the supplied parts and any remaining recommendations.
For bonded rubber joints, final tightening follows the specified vehicle position where required. Other joints may have different procedures. Access can also vary, so removing a particular link or steering component is not a universal step for every control-arm repair. Additional damage or seized fixings are discussed if they change the agreed work.
Finish the mechanical repair properly
Alignment after arm replacement
The arm locates part of the suspension, so replacement can affect wheel geometry. The need for checks and adjustment is considered as part of completing the job.
Repair wear before adjustment
An alignment setting cannot compensate for a loose ball joint, a damaged arm or a bush that allows unwanted movement. Those mechanical issues need attention first. We explain any remaining wear that would prevent a stable adjustment, instead of presenting alignment as a substitute for the repair.
Where needed, wheel alignment follows the completed mechanical work. The quotation states whether it is included or additional. A pair of arms does not require paying for two separate alignment visits when the work is completed together.
Assess the original complaint
The final checks consider why the car came in, including noise, tracking or unwanted movement. If another fault remains, it should be explained rather than hidden by a promise that new arms cure every steering problem. A suitable road assessment helps evaluate the repair once the assembly and geometry checks are complete.
Conventional arm replacement does not automatically require coding. Any diagnostic or calibration work depends on the fitted equipment, relevant procedure and findings. The job record should identify that work separately when it is needed.
Parts matched to your BMW
Different layouts, specific repairs
The model is a starting point for the enquiry. The exact vehicle and fitted suspension determine the arm and installation requirements.
Sedans, coupes and roadsters
A 3 Series, 5 Series or Z4 can have different arm shapes and joint arrangements across generations. Standard, sport and modified suspension should be identified, and rear-wheel-drive and xDrive applications may use different components. We obtain the relevant vehicle details during the parts check.
An inspection report or part number you already have can be helpful, but neither is a requirement for booking. Tell us the model and what you notice. We identify the component and explain whether the estimate is for a single arm, a pair or another repair.
X models and rear suspension
For BMW X5 control arm replacement, the exact generation and affected arm matter. A quote for one front lower arm should not be confused with a full front suspension set. The same care applies to other X models and performance variants.
Rear suspension links are assessed and quoted separately from the front-arm budgets above. Their layout and access can differ considerably. If the complaint comes from the rear, we identify the affected arm or joint first and provide a relevant quotation instead of applying a front-axle package.
Three clearly defined repairs
Example control arm quotations
These illustrative estimates show different repair quantities and inclusions. They are not historical customer-job prices. VAT and the final payable amount are confirmed in the written quote.
2016 BMW 528i · one front arm
Single-arm replacement
One compatible complete front arm with fitting, where inspection identifies an isolated worn or damaged assembly. The corresponding arm remains if it is serviceable. This example includes the selected arm and supplied joint or bush, but excludes alignment and additional damaged parts unless added to the written quote.
2014 BMW 320i · front pair
Left and right arms
Two corresponding front control arms with fitting where the condition supports replacing the pair. The estimate combines two per-arm allowances. It does not include every arm or link on the front axle. The selected brand, components supplied and any additional fixings are identified before the job is agreed.
2019 BMW X5 · alignment included
Front pair + alignment
A pair of corresponding front arms with fitting, followed by alignment where required. The total combines AED 1,800–3,200 for the arms and installation with the X Series alignment allowance of AED 300–380. Extra suspension links, impact damage or more extensive repairs require a separate quotation.
Customer feedback
Owners on the finished repair
Feedback shared after control-arm repairs and the assessment of front suspension concerns.
“These guys replaced both lower arms, aligned them, and now it drives like new again.”
Ahmed Al Mansoori
“No more wobble. It finally feels like a BMW again.”
Khalid Hassan
“I should’ve come here first.”
Fatima Qureshi
Before booking
Your questions answered
Practical answers about the repair, the price and arranging a workshop visit.
Can I replace just one front control arm?
Yes, when the fault is limited to one arm and the other side remains serviceable. Both sides and the relevant surrounding joints are assessed before advising. A pair is recommended when its condition supports that work, with the exact arm positions and quantity stated in the quote.
Do new arms include bushes and ball joints?
That depends on the assembly being supplied. Some arms come with their relevant bush and joint fitted; other parts listings have different inclusions. We identify the selected part and what comes with it so you can compare the complete fitted repair, not just a product photograph.
Can the bush be replaced instead?
A bush-only repair can be suitable when the bush is separately serviceable and the arm, mounting bore and ball joint remain sound. A damaged arm or worn integrated joint may require the complete assembly. We explain both condition and fitted cost when comparing the options.
Will a new arm fix uneven tire wear?
It can address wear or damage that contributes to incorrect wheel control, but tire wear also has other causes. The mechanical condition, tires and geometry are assessed together. Replacing an arm does not reverse existing tire damage; any tire or alignment recommendation is explained separately.
How long will the workshop visit take?
The expected time depends on the identified arm, parts availability and access. Seized fixings or additional damage can extend the work. We discuss completion once the repair is assessed and explain changes if dismantling reveals something that affects the agreed job.
What do I need to arrange an inspection?
Call or WhatsApp with the BMW model and a short description of the noise, movement or handling change. We can arrange the workshop assessment and obtain any further details needed for the correct parts. You do not need a chassis code or part number to start.
Restore confident wheel control
Arrange your control-arm inspection
Bring your BMW to our Al Quoz 4 workshop for an assessment of the affected arm and joints. We will explain the suitable repair, parts choice and fitted quotation.
